Foto Disparador (CIR262S)

Written by: Newton C. Braga
Category: Banco de circuitos

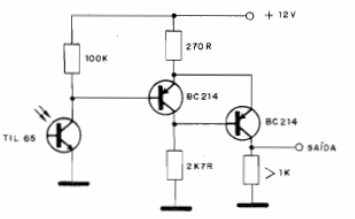

Este circuito produce un pulso rápido de conmutación con la luz sobre el sensor. El circuito es sugerido por Texas Instruments en su manual de optoelectrónica. La resistencia de salida puede cambiarse según el rendimiento deseado para el circuito. Equivalente como el transistor BC558 puede ser utilizado. El foto-transistor también admite equivalente. La resistencia de 1 k en el emisor del transistor se debe modificar para obtener la amplitud de pulsos 3,3 o 5 V para el Arduino, según sea el caso.





Foto Disparador
Foto Disparador
