Regulador Simétrico de 15 V con 50 mA MC1458 (CIR2023S)

Written by: Newton C. Braga
Category: Banco de circuitos

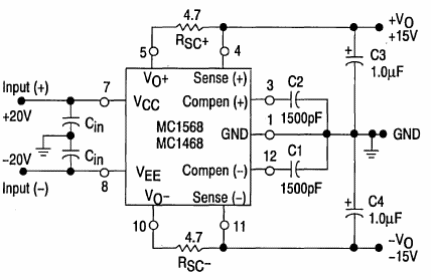

    Este circuito es la base de una fuente simétrica de 15 V. También se puede utilizar el MC1468. No son componentes comunes actualmente, pues el circuito es del Linear Interfaz IC de Motorola de 1993.
