Regulador de 7 a 30 V con el 7805 (CIR1712S)

Written by: Newton C. Braga
Category: Banco de circuitos

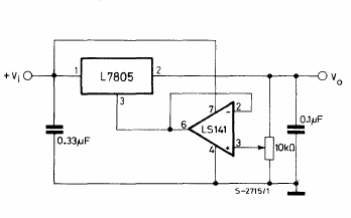

El L7805 es el equivalente SGS del 7805. El circuito es del manual de circuitos integrados lineales de la SGS y el amplificador operacional puede ser un 741. La tensión de entrada debe ser de al menos 33 V. La corriente máxima de salida es de 1 A .
