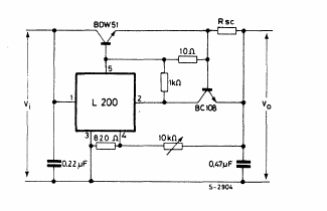

Regulador de alta corriente con transistores NPN y L200 (CIR1701S)

Written by: Newton C. Braga
Category: Banco de circuitos



     El circuito integrado utilizado en este circuito no es muy común actualmente, pues se trata de configuración obtenida en el manual de circuitos integrados de la SGS de 1982. El transistor admite equivalente según la corriente deseada en la salida.
