Parpadeante LED Alternada (CIR5179S)

Written by: Newton C. Braga
Category: Banco de circuitos

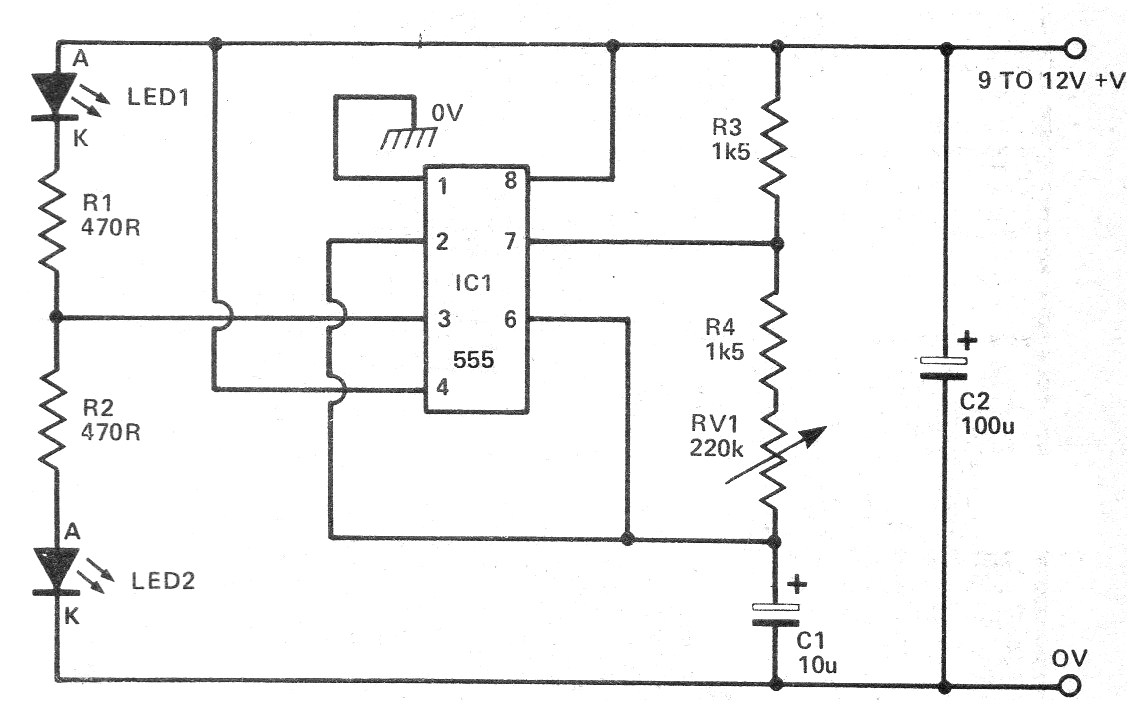

    Esta versión tradicional de 555 con LEDs se obtuvo en una Hobby Electrónica de 1979. El circuito tiene la frecuencia ajustada por RV1 y depende de C1. La alimentación se puede hacer con tensiones de 6 a 12 V, a diferencia de los 9 a 12 V indicados.




| Haga click en la imagen para ampliar |
