Cables de Audio (CIR1112S)

Written by: Newton C. Braga
Category: Banco de circuitos

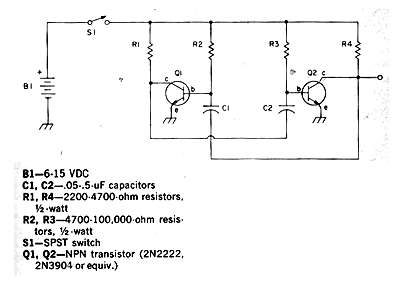

Publicado en el 101 Electronics Projects de 1979, este astable genera una señal rectangular rica en armónicos en la pista de audio. La frecuencia es determinada por R2, R3 y por los capacitores. En la sección de matemáticas para electrónica las fórmulas para este circuito. Los transistores también pueden ser del tipo BC548 y la alimentación puede oscilar entre 6 y 15 V. Para utilizar como inyector de señales, coloque en la salida un capacitor de 10 nF para aislar el componente DC del circuito.
