Amplificador de ganancia 100 (CIR19239S)

Written by: Newton C. Braga
Category: Banco de circuitos

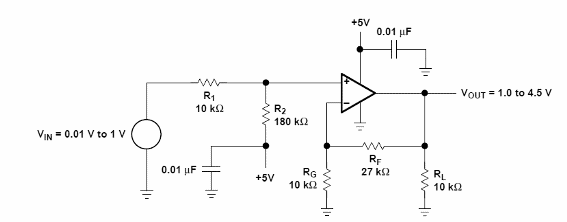

Este circuito es del manual de amplificadores operacionales de Texas Instruments. Se puede utilizar cualquier operacional y la fuente no necesita ser simétrica. Rf y Rg determinan la ganancia del circuito.



Amplificador de ganancia 100
