Sirena para alarma (CIR15567S)

Written by: Newton C. Braga
Category: Banco de circuitos

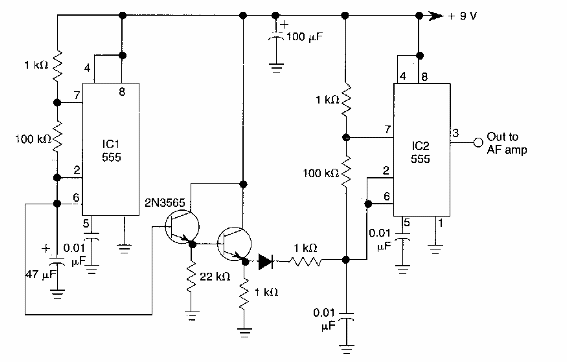

     Este circuito con el 555, se obtuvo en una documentación estadounidense de los 90. La señal debe aplicarse a un buen amplificador. El sonido es similar al de una sirena de policía.



Sirena para alarma
Sirena para alarma
