Oscilador de puente de Wien (CIR15208S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este circuito genera señales sinusoidales entre 300 y 3000 Hz. Encontramos un circuito 303 de los años 90. Los operacionales son tipos con FET. La fuente de alimentación debe ser simétrica.

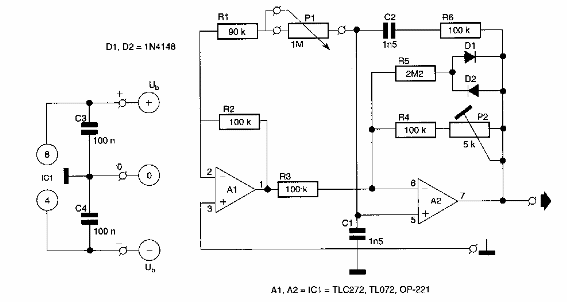

Oscilador de puente de Wien
Oscilador de puente de Wien
