Alarma de Fusible fundido (CIR12477S)

Written by: Newton C. Braga
Category: Banco de circuitos

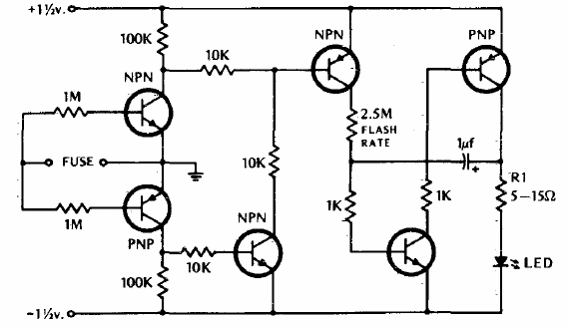

    Este circuito de solo 3V se encontró en la documentación estadounidense anterior, pero se puede implementar con transistores NPN y PNP de propósito común. El circuito parpadea cuando se abre el fusible.



Alarma de Fusible fundido
