Multiplicador de 4 Cuadrantes (CIR9010S)

Written by: Newton C. Braga
Category: Banco de circuitos

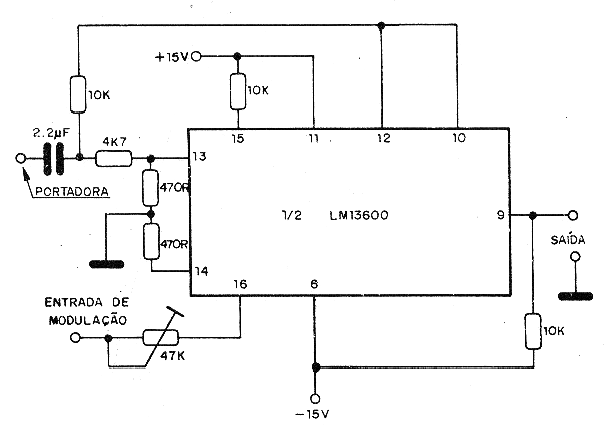

Este circuito que también se conoce como modulador en anillo utiliza como base un amplificador operacional de transconductancia del tipo LM13600.
