Crowbar de 5 V (CIR2799S )

Written by: Newton C. Braga
Category: Banco de circuitos

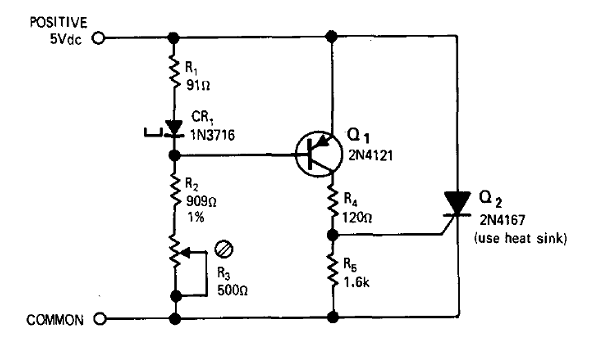

Este circuito se dispara quemando un fusible de entrada cuando la tensión monitoreada supera los 5 V. El SCR admite equivalentes y el transistor puede ser el BC558. El circuito es de una documentación americana de los años 70.
