Triplicador de tensión (CIR15780S)

Written by: Newton C. Braga
Category: Historia

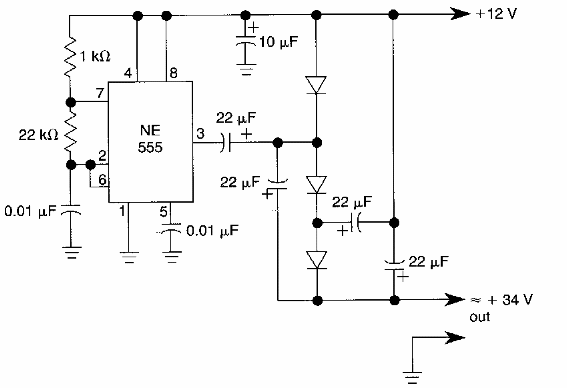

     Este simple triplicador de baja potencia se encontró en la documentación estadounidense de los años 90. Los diodos pueden ser de propósito general y la frecuencia está determinada por la red RC del 555.



Triplicador de tensión
Triplicador de tensión
