Texas Instruments DLP4620S-Q1 DMD automotriz de 0,46"

Written by: Newton C. Braga
Category: Nuevos Componentes , Industria y Noticias

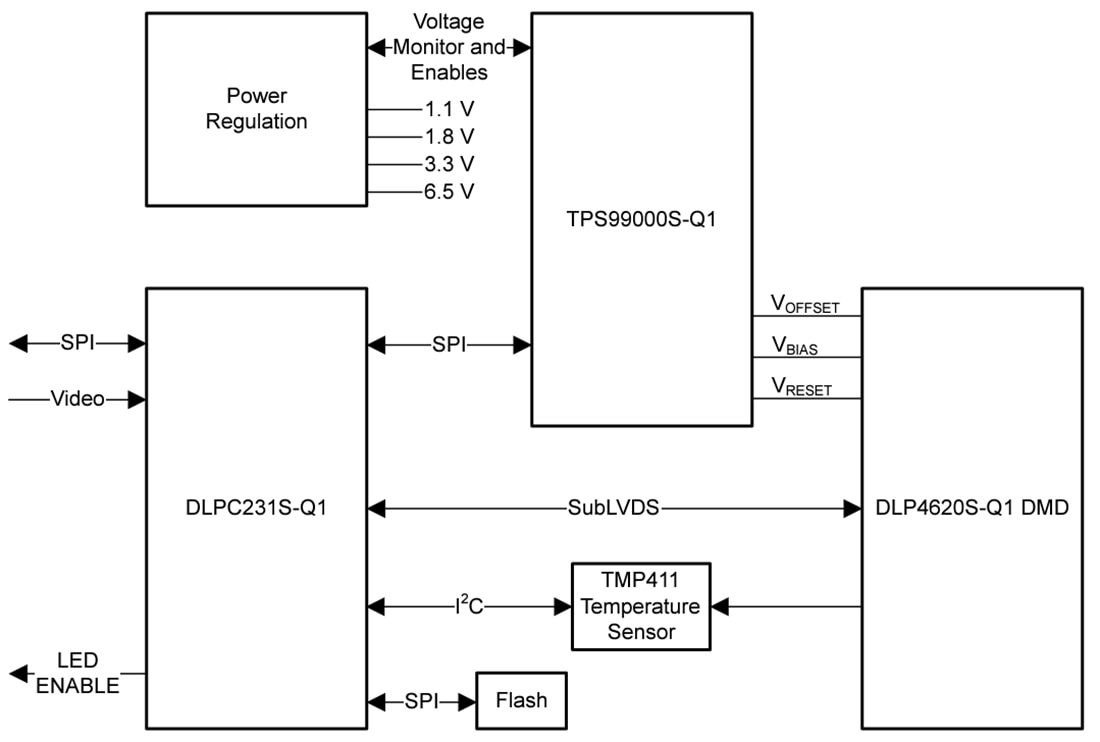

El dispositivo de microespejo digital (DMD) automotriz DLP4620S-Q1 de 0,46" de Texas Instruments se combina con el controlador DMD DLPC231S-Q1 y el controlador de gestión e iluminación del sistema TPS99000S-Q1 para brindar la capacidad de lograr una pantalla frontal (HUD) de alta resolución. , realidad aumentada de alto rendimiento. La relación de aspecto 2:1 admite múltiples diseños de relación de aspecto. El DLP4620S-Q1 tiene un buen equilibrio entre resolución y rendimiento óptico, lo que permite un amplio campo de visión y una gran ventana del conductor para una experiencia de usuario mejorada. Este conjunto de chips, junto con láseres o LED y un sistema óptico, permite colores NTSC con una profundidad del 125 %. También tiene una alta relación de atenuación dinámica de más de 5000:1, un brillo extremadamente alto de más de 15 000 cd/m2 y alta energía solar. tolerancia de carga. Esta característica permite diseños de motores ópticos compactos y altamente eficientes para admitir configuraciones de controlador izquierdo y derecho. El dispositivo Texas Instruments DLP4620S-Q1 es un paquete de panel para optimizar el costo del sistema. El paquete tiene baja resistencia térmica al conjunto DMD para permitir soluciones térmicas eficientes.

Clique aquí para ver las hojas de datos
