Texas Instruments ISOTMP35-Q1 Sensor de temperatura aislado

Written by: Newton C. Braga
Category: Nuevos Componentes , Industria y Noticias

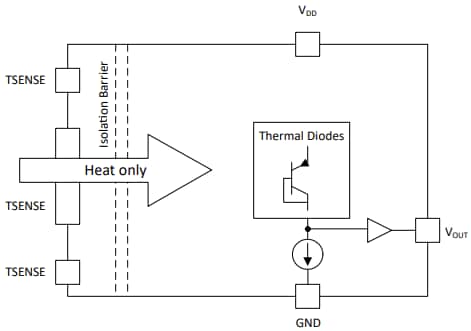

El sensor de temperatura aislado ISOTMP35-Q1 de Texas Instruments está diseñado con salida analógica y una respuesta térmica rápida de <2 segundos. Este sensor combina una robusta barrera de aislamiento integrada que ofrece un voltaje de resistencia de aislamiento de 3000VRMS y un voltaje de trabajo de aislamiento de 500VRMS. Esta integración permite que el sensor se ubique junto con fuentes de calor de alto voltaje sin necesidad de costosos circuitos de aislamiento, lo que proporciona una mayor precisión y una respuesta térmica más rápida. El sensor ISOTMP35 opera en un rango de voltaje de suministro no aislado de 2,3 V a 5,5 V y permite una fácil integración en aplicaciones donde la energía subregulada no está disponible en el plano de alto voltaje. El sensor de temperatura ISOTMP35-Q1 tiene certificación AEC-Q100 para aplicaciones automotrices. Las aplicaciones típicas incluyen monitoreo de temperatura SiC/IGBT PowerFET, sistema de gestión de batería (BMS) HEV/EV, cargador a bordo (OBC) HEV/EV y cargador inalámbrico, convertidor CC/CC HEV/EV y sensor de temperatura del motor.

Clique aquí para ver las hojas de datos
