Integrador (CIR5816S)

Written by: Newton C. Braga
Category: Banco de circuitos

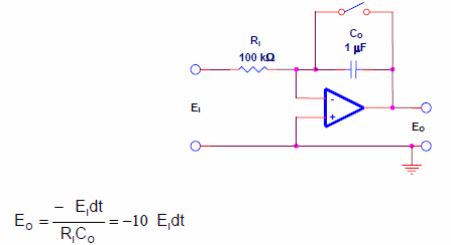

     En la figura tenemos un integrador típico con amplificador operacional encontrado en una documentación de Texas Instruments de 2016. El circuito tiene su comportamiento dado por la fórmula junto al diagrama.
