Detector de defectos intermitentes (CIR4321S )

Written by: Newton C. Braga
Category: Banco de circuitos

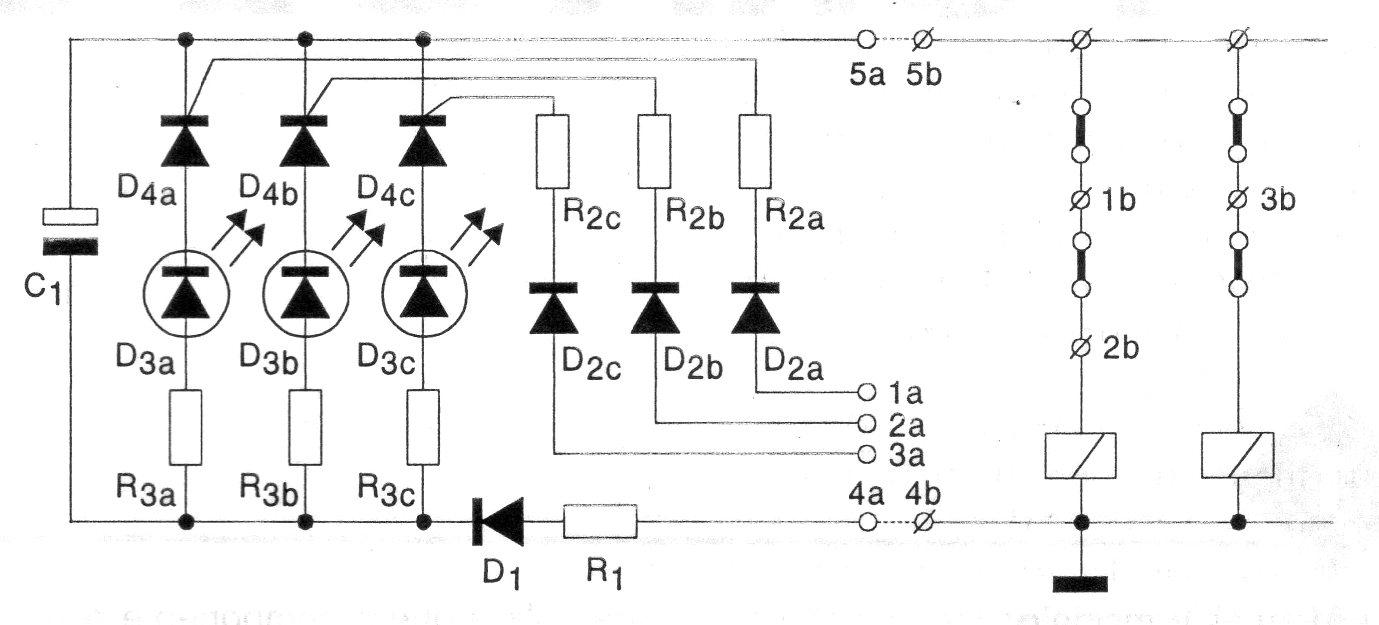

     Este circuito fue desarrollado para encontrar defectos intermitentes en un mando eléctrico. En el caso del defecto el circuito dispara indicando el momento del ocurrido.




| Haga click en la imagen para ampliar |
