Prueba de Joysticks (CIR2661S)

Written by: Newton C. Braga
Category: Banco de circuitos

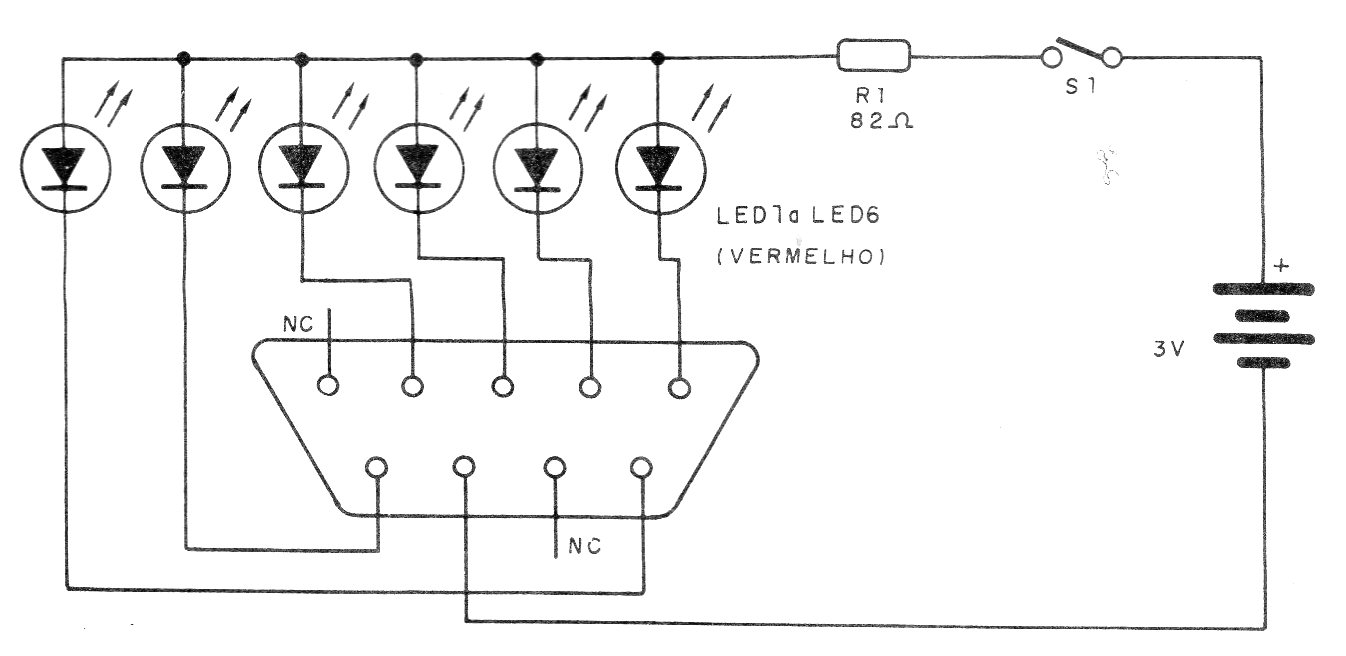

    Este circuito es de una publicación antigua, de 1992, siendo indicado para probar los antiguos joysticks del sistema de juegos Master de la época. El circuito indica el funcionamiento a través de LEDs utilizando un conector apropiado.




| Haga click en la imagen para ampliar |
