Circuitos osciladores de audio (CIR22635S)

Written by: Newton C. Braga
Category: Banco de circuitos

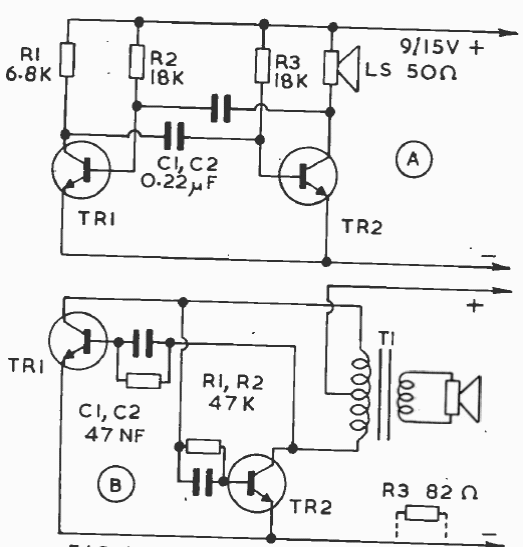

En la figura tenemos dos osciladores de audio para ser utilizados en pequeñas alarmas y otros dispositivos. El circuito es de una documentación antigua. Los transistores pueden ser el BC548.



Circuitos osciladores de audio
Circuitos osciladores de audio
