Amplificador de tensión (CIR22407S)

Written by: Newton C. Braga
Category: Banco de circuitos

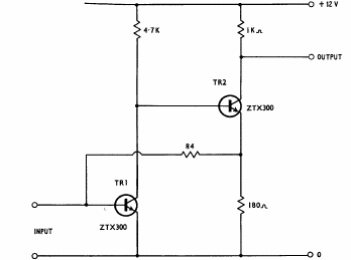

Este amplificador con una banda de paso de 9 MHz y una ganancia de tensión de 10 con dos transistores se encontró en el Manual de transistores de Ferranti 1974.



Amplificador de tensión
