Probador de transistores (CIR22219S)

Written by: Newton C. Braga
Category: Banco de circuitos

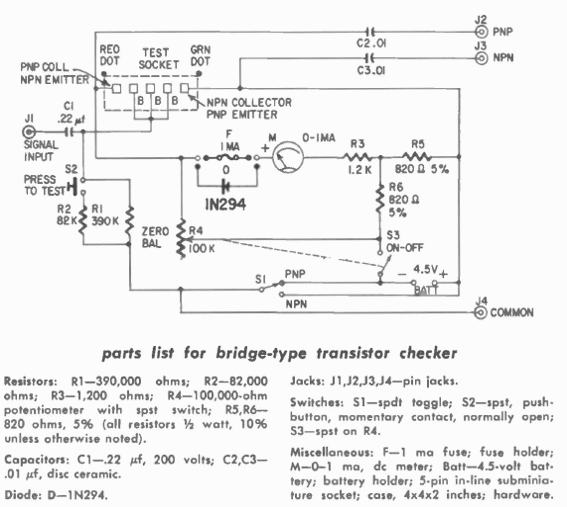

Este circuito puente fue encontrado en un libro de Gersnback de 1960. El circuito prueba transistores NPN y PNP de propósito general de ese momento pero también se puede usar con algunos tipos actuales.



Probador de transistores
Probador de transistores
