Limitador de ruido para audífonos (CIR22198S)

Written by: Newton C. Braga
Category: Banco de circuitos

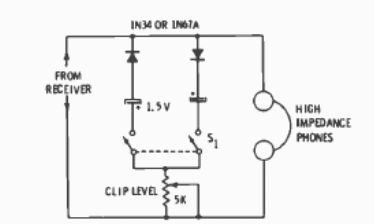

Este circuito se encontró en un manual de radio de 1977. Se utiliza en receptores de comunicaciones para eliminar el ruido que puede volverse desagradable al escuchar con audífonos.



Limitador de ruido para audífonos
Limitador de ruido para audífonos
