Generador de audio (CIR22100S)

Written by: Newton C. Braga
Category: Banco de circuitos

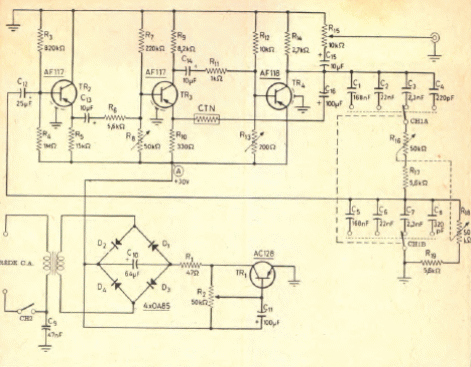

Encontrado en uma Popular Electronics de marzo de 1967, este circuito utiliza transistores de germanio contemporáneos. El circuito genera señales de 20 Hz a 90 kHz.
