Indicador de luz ambiental (CIR22010S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito utiliza un LDR como sensor para activar un indicador LED a un nivel de iluminación preestablecido. La fuente de alimentación no tiene que ser simétrica.

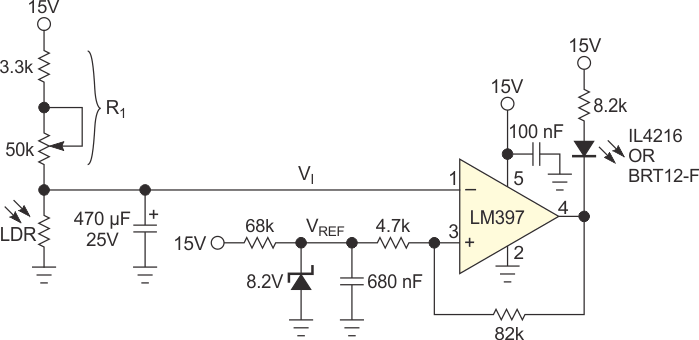

Indicador de luz ambiental
Indicador de luz ambiental | Haga click en la imagen para ampliar |
