Detector regenerativo (CIR20974S)

Written by: Newton C. Braga
Category: Banco de circuitos

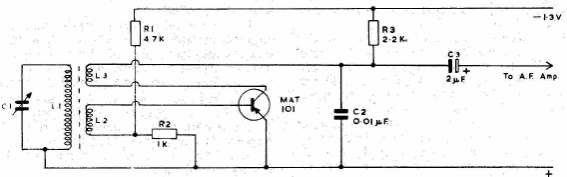

Este circuito para un receptor se encontró en una documentación inglesa de 1963. El transistor está hecho de germanio. No se proporcionó información sobre las bobinas.



Detector regenerativo
Detector regenerativo
