Control de calentador (CIR20717S)

Written by: Newton C. Braga
Category: Banco de circuitos

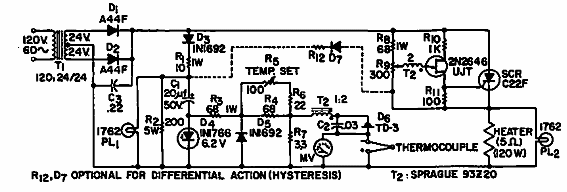

Este circuito se encontró en un antiguo manual de GE. Utiliza un termopar como sensor. El SCR debe estar de acuerdo con la potencia de la carga controlada.



Control de calentador
Control de calentador
