Integrador conmutado (CIR20321S)

Written by: Newton C. Braga
Category: Banco de circuitos

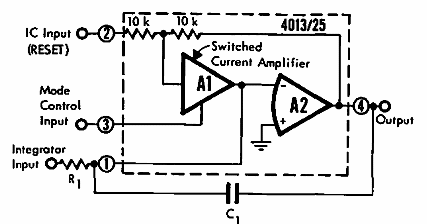

Encontrado en la documentación de Burr-Brown de 1969, este circuito hace uso de uno integrado de la época, que no es el conocido CMOS 4013. El capacitor C1 y RI determinan la constante de integración.
