Modulador con TAA111 (CIR20062S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito es adecuado para modular pequeños transmisores de FM para escuchas o espionaje. El circuito es de la documentación de los años 90 y el circuito integrado utilizado no es el más común en la actualidad.



Modulador con TAA111

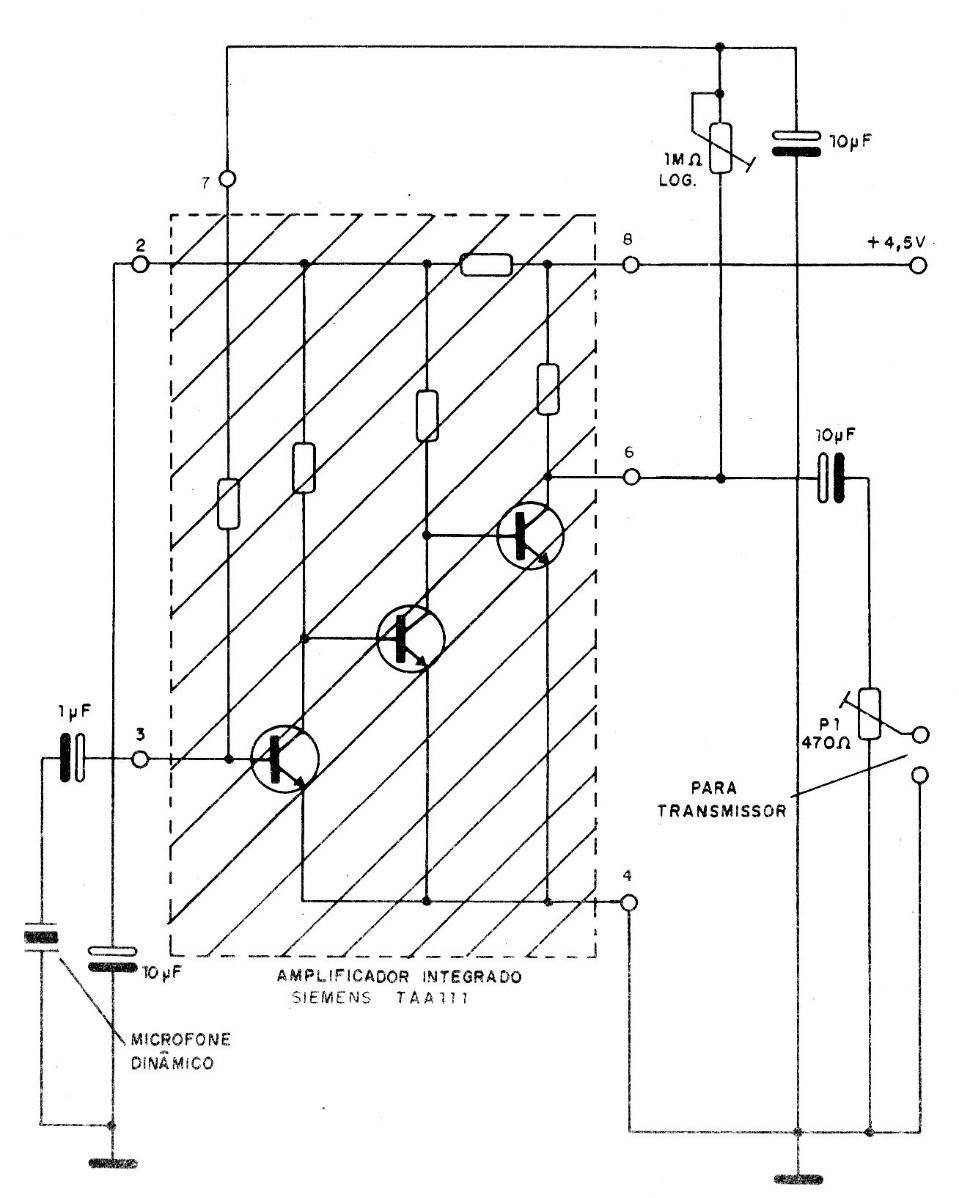

Modulador con TAA111 | Haga click en la imagen para ampliar |
