Indicador de tensión 110 V o 220 V (CIR19981S)

Written by: Newton C. Braga
Category: Banco de circuitos

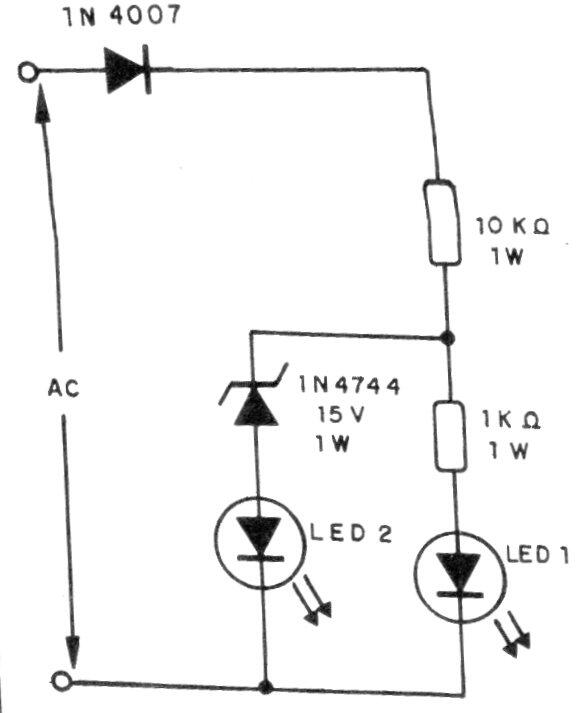

Este circuito simple utiliza un diodo Zener y dos LED para indicar si la tensión de una red eléctrica es de 110 V o 220 V. El diodo Zener es de 15 V x 1 W y los LED son comunes, rojo (110 V) y verde (220 V).
