Regulador de 12 V con 1 A (CIR16238S)

Written by: Newton C. Braga
Category: Banco de circuitos

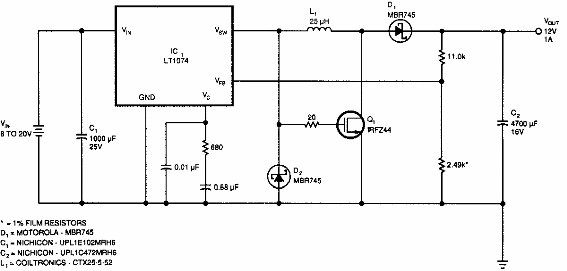

     Encontrado en una EDN de los años 90, este regulador hace uso del circuito integrado de la época. La entrada puede ser de 8 a 20 V.



Regulador de 12 V con 1 A
Regulador de 12 V con 1 A
