Shield de relé (CIR15886S)

Written by: Newton C. Braga
Category: Banco de circuitos

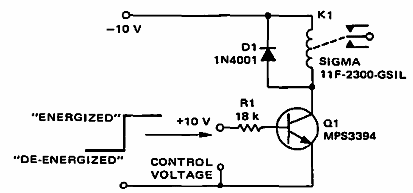

     Este circuito de shield es de documentación de Motorola de 1968. El relé está de acuerdo con la tensión de alimentación. R1 se puede reducir a tensiones de disparo más bajas.



Shield de relé
Shield de relé
