Relé activado por sombra 555 (CIR15018S)

Written by: Newton C. Braga
Category: Banco de circuitos

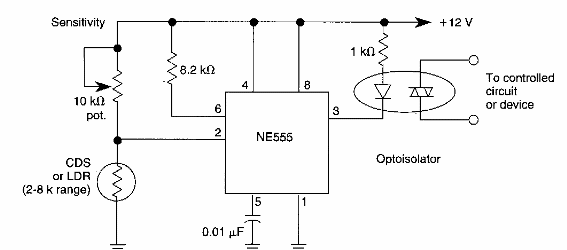

     Obtuvimos este circuito en una documentación técnica de los años 90. El circuito tiene su ajuste de sensibilidad en el potenciómetro. La tensión de alimentación se puede reducir con un cambio del resistor de 1k.
