Filtro Ultra simple Valvulado (CIR9298S)

Written by: Newton C. Braga
Category: Banco de circuitos

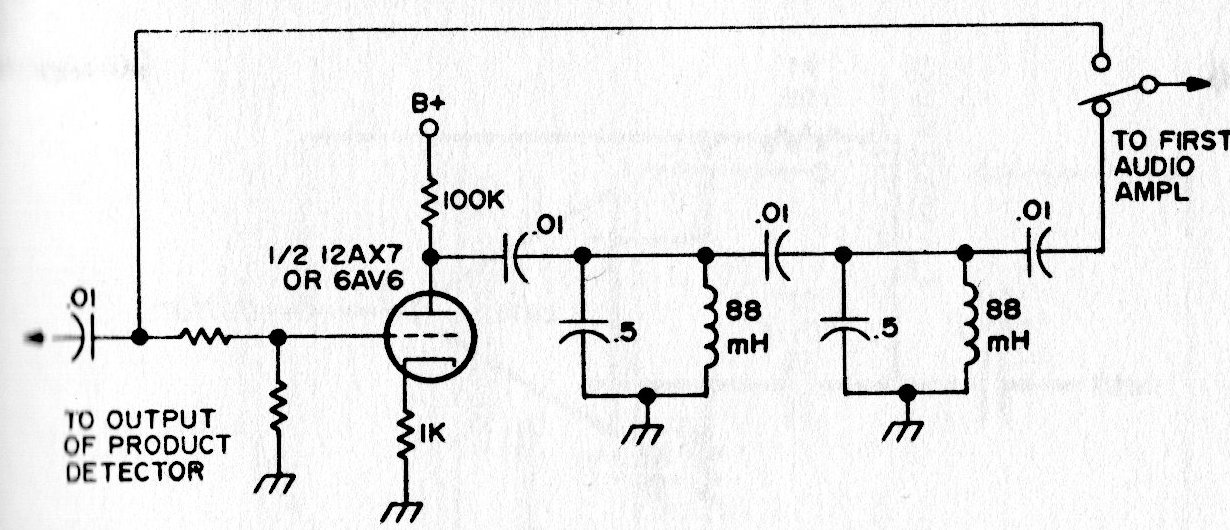

     Este circuito valvular es de una documentación de los años 80. El filtro es del tipo selectivo y los componentes R y C determinan la frecuencia de operación. La tensión + B debe ser del orden de al menos 150 V.




| Haga click en la imagen para ampliar |
